1200 Norcold

The Brand-new Amish built Norcold 1200 series  cooling units are coming off production every day getting ready to ship , there is no lead time.

3 year warranty with the option to extend

Here's the correct way for a Norcold 1200 series cooling unit install

Please note if your fridge is in a slide out, it’s required to have all air baffling removed from the top side vent and a slide out fan kit installed for proper ventilation and warranty purposes.

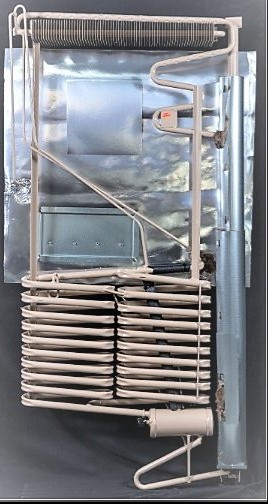

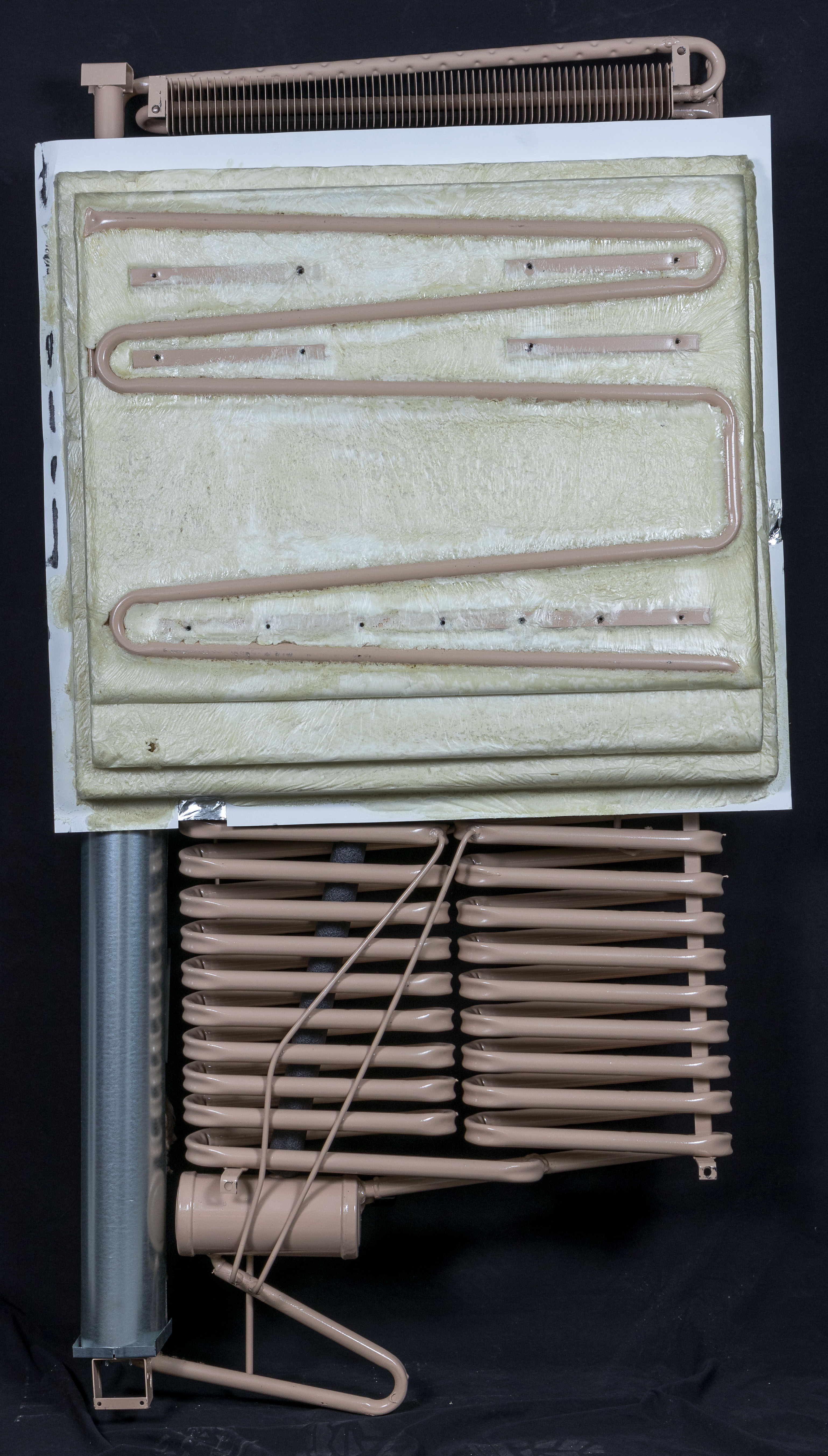

This Norcold 1200 cooling unit replacement coil will be the correct replacement for all these models: 1200LR, 1200LRBK, 1200LRSS, 1200LRWH, 1200LRIM, 1200LRIMD, 1200LRIMBK, 1200LRIMSS, 1200LRIMSSD, 1200LRIMWH, 1201LRIM, 1201LRIMSS, 1201LRIMSSD, 1201LRIMWPM,

Click the link below for the PDF file

https://1drv.ms/b/s!Arejq0PTOzT2gaRnOgPE7LkXr6DMKw?e=AH3SFt

All Cooling unit comes with Tube of Thermal Mastic cold Transfer Compound, spray foam sealer to make to the foam block when placed back air tight sealed, and foil back tape to give a nice finish look around the backer

NOTE:

There is a pink sticker on the box stating: "Do not sign for UNIT till you open and inspect checking for Major shipping Damage and/or Leaks". If major damage or ammonia leaks refuse the shipment. If you sign for unit an Major shipping damage found later, you own the unit.

For warranty if in slide out:

1. All top upper vent door covering baffles MUST to be removed on all slide out models

2. A slide out fan 12032 or equal fan has to be added to the top side vent to force removing trapped hot air from the fridge area above the condenser
