We now offer the N2118 cooling unit several ways, standard coils or to Convert a Dual compressor 12 DC or AC options. Read Selection below:
The Brand-new Amish built Norcold 2118 Polar Max series Cooling Units are on production ready for shipping, the Brand-new Amish built cooling unit for Norcold N2118 are in high demand now, why wait, get in line.
This Norcold Polar Series 2118 Amish Built cooling unit replacement coil will be the correct replacement for Norcold Poplar Max 2118. The Brand-new Amish built cooling unit for the Norcold 2118. The Factory has requested the items below be followed
#1 all Upper Side vent Door baffle Must to be removed on all slide out models.
#2 In slide outs, fan/Fans has to be added to the top upper side vent to force & remove hot air trapped from the fridge upper area.
#3 only the 2118's we have a disclaimer on the factory website that states the 2118 we recommended the Option below dual compressor unit in weather condition get close to 100 degree due Norcold build the N2118 with thinner wall box insulation and it has flapper door sealing issues.
It will look different, but is the correct re-designed coils to fit the N2118.
Click Below for the PDF Change Out File
All Cooling unit comes with Tube of Thermal Mastic cold Transfer Compound, spray foam sealer to make to the foam block when placed back air tight sealed, and foil back tape to give a nice finish look around the backer
There is a RED sticker on the box stating: "Do not sign for UNIT till you check and inspect for Major shipping Damage when you see Damage and/or Leaks". If major damage or ammonia leaks refuse the shipment. If you sign for unit with shipping damage found later, you own the unit. This is if you seen Freight damage to cooling unit not just box Damage.
By ordering you are confirming you read the disclaimer and the required items to be followed that's requested by the factory to follow.
The demand for the Amish built cooling units is growing faster than production can keep up with, the RV'ers and RV Dealers across the USA are starting to hear about the way the Amish Refrigeration Company changed the way the Norcold Cooling Units are built (see note below). The factory has increased production output to meet demand.
This is an important message below that should be read.

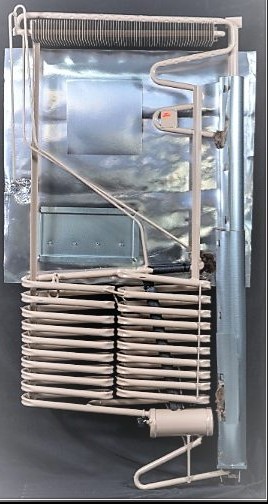

NOTE! If you noticed the picture of the Amish built Norcold 2118 series cooling unit, the Amish RV Refrigeration Company have changed to a better cooling design, having 2 sets of lower loops on the back to allow for better air flow and able to maintain colder during hotter weather than before and no recall kits needed, since the complete cooling unit coils tubing is built with some tubing 50% thicker tubing wall, Plus now the evaporator tubing is a full one inch able to make a colder unit. Also, other added design, boiler tube runs 100's of degree cooler, double loops, they built into the upper condenser fins a double pass through tubing allowing the air to pass through the fins causing to Ammonia Vapor to condense with less air flow. All these added designs give your Amish built cooling unit a very high degree of cold during the hottest weather without causing your coils to over heat and fail.
By ordering you are confirming you read the disclaimer and the requested items to be followed that's requested by the factory requested to follow.
N2118 Hvac 12V DC) For the: Norcold 2118 This Replacement unit will convert your gas/elect RV refrigerator into a residential fridge, which eliminates your LP gas/ 120V electric absorption system. This cooling unit is built with a dual compressor system and comes standard with our ‘Universal Fridge Controller‘, which is designed specifically for our Hvac units. This controller will eliminate your existing Norcold controls on the front and back of the fridge. The Hvac unit uses about 66% less power than what the absorption unit uses on the electric setting. Power usage: 11.6 amps at 12V (139 watts). In stock and ships within 24hrs Mon-Friday
(NOR 2118 Hvac 120V) For the: Norcold 2118 This Replacement unit will convert your gas/elect RV refrigerator into a residential fridge, which eliminates your LP gas/ 120V electric absorption system. This cooling unit is built with a dual compressor system and comes standard with our ‘Universal Fridge Controller‘, which is designed specifically for our Hvac units. This controller will eliminate your existing Norcold controls on the front and back of the fridge. The Hvac 120V unit uses about 25% less power than what the absorption unit uses on the electric setting. Power usage: 3 amps at 120V (360 watts). In stock and ships within 24hrs Mon-Friday.
You will need approx. 6 1/2″ of clearance from the back of fridge box to the inside of the vent door louvers at the bottom center of the fridge, where the compressor will set. The air louvers on the back of the vent door can be trimmed away if needed, for a little more clearance.
This unit comes with new ‘Universal Control’ system, installation manual, foam sealant, thermal mastic, foil tape, freezer/fin screws and LP gas plug, basically everything needed to do the install, no additional parts needed.
The 12V wiring on your coach to the refrigerator might have to be upgraded.
