Option #1: This Fan add on Kit is a very easy install, usable on any brand or model RV refrigerator. The Fan kit will come with mounting hardware, Wire Harness, Automatic Thermostat activating Fan around 85 degree thermostat that hangs loose to read air temps behind refrigerator at fan location and ON-OFF master DC Power switch with fuse mounted in a holder,
We have an aftermarket FAN that will increase the flow of air up through the Condenser fins for fast removing of heat that was pulled from the inside food zone, the cooling of the inside of the food zone cools faster and able to maintain cold during the hottest of weather when you have a good flow of air through the condenser fins..
The most important way for getting your RV refrigerator to cool correct, is good flow of air blowing up through the condenser fins. Fans are not used to remove heat from the compartment, they are only used to increase air flow through the condenser fins or pull the trapped heat from the top of the condenser fins if your refrigerator is in a slide out. Most RV refrigerators need the increased air flow when the outside temps reaches above the 90's degrees.
Fan over all size and Specs.
4 3/4 by 4 3/4 by 1 1/4
RPM 2300
Amp 0.25
DC voltage up to 13.7v
DC Brushless
Ball bearing
It can be mounted in many ways you want, regardless where or how it's mounted the flow of air goes through the condenser fins.

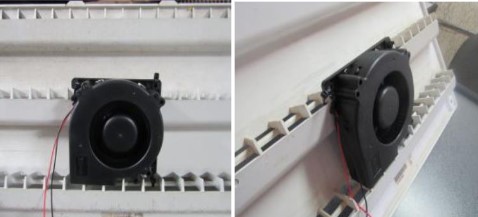

If FAN is an add-on for any refrigerator in a slide out room to help the air to exit out the upper vent it would zip tie to the upper vent .

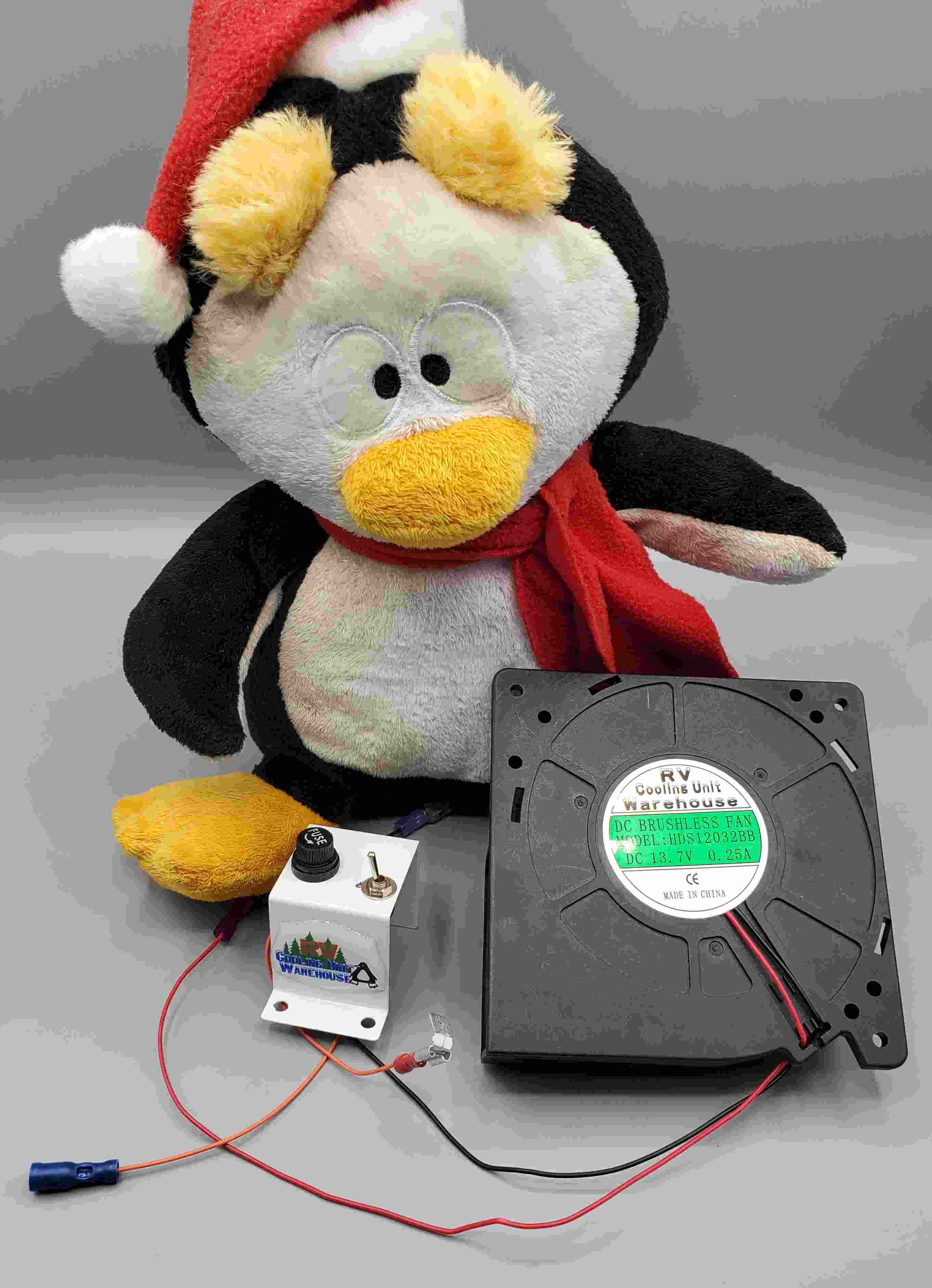

The picture shows a simple screw for the flush mount to attach the fan so you can mount at a location you need and at the angle you select. Just mark the spot. then inset is plastic so safe to use and no predrilling at any location, for the vent door just use zip ties. Adding a Digital Fan control, we sell a better way for unit is slide out have your cooling unit the best set up.
Option #2
Fan 12038UV operating Cooling Unit in a Slide Out use, fans to increase the Air Flow through the condenser fins. Fans are use to increase air flow through the condenser, not used to remove heat from the compartment.

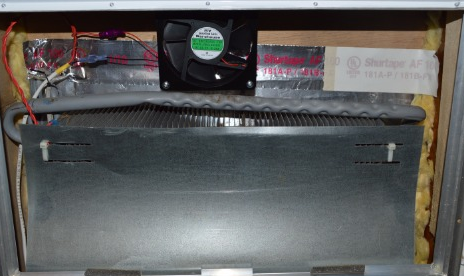

This fan is mounting a metal frame in the upper vent door area for RV Refrigerators in a Slide out for removing the trapped heat from above the condenser fin. This is a must have option to compile with all New Units for warranty.
These fans are 12 VDC with 0.20A draw each. Smooth DC brushless operation with Ball Bearings
DC Brushless Fan DC
13.7 VDC 0.20 Amp draw (10.8 to 13.2 DC volt range)
3000 RPM
CFM 107.54
Noise level dBA 41.5
Over all size 4 3/4 x 4 3/4 x 1 1/2
