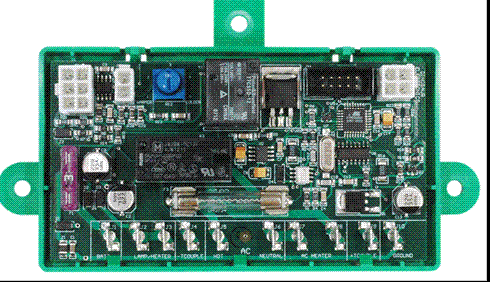

Dinosaur 3850415.01 Circuit Board Built has a surge protection. Protects from installation errors and the RV Power supply. Fuse protected on the 120 VAC circuit and 12 VDC supply. Improved thermocouple circuit to eliminate recurring check light problem.

Food saver feature keeps the refrigerator operating if the eyebrow board or communication link fails. Built in control allows temperature adjustment in the "Fixed" temperature refrigerators. The temperature control also allows compensation for aging and production variations in those units that have the 1 2 3 4 5 temperature control on the operator panel. Built in microcomputer for highly reliable operation 2-way or 3-way operation Repeats the 3 try ignition sequence at 30 minute intervals if no flame is sensed DC element will drop out and the DC mode light will flash if the voltage level falls too low for more than 10 seconds Dimensions without cover: approximately 4 3/4" x 2 11/16", not including ears Includes a protective cover.

Three year warranty

NOTE!!

The 3850415.01 board can be used on many of the following models, BUT only if your Dometic has the 3850415.01 series boards the refrigerator installed.

 If your Main Power board does not look like the picture or have the 3850415.01 on it, you must use the P-711.

NDR1062, NDR1272, NDR1282, NDR1292, NDR1492, RM2551, RM2554 RM2607, RM2611, RM2612, RM 2652, RM2662, RM2807, RM2811, RM2812, RM2852, RM2862, RM3862, RM3863, RM4872, RM4873, and some RM7732, RM7832

The model 3850415.01 size is without cover is 4 3/4" x 2 11/16"

The other Dometic board or the P-711 is 4 3/4" x 3 3/4"

These two boards will not inter-change.
